Package Included

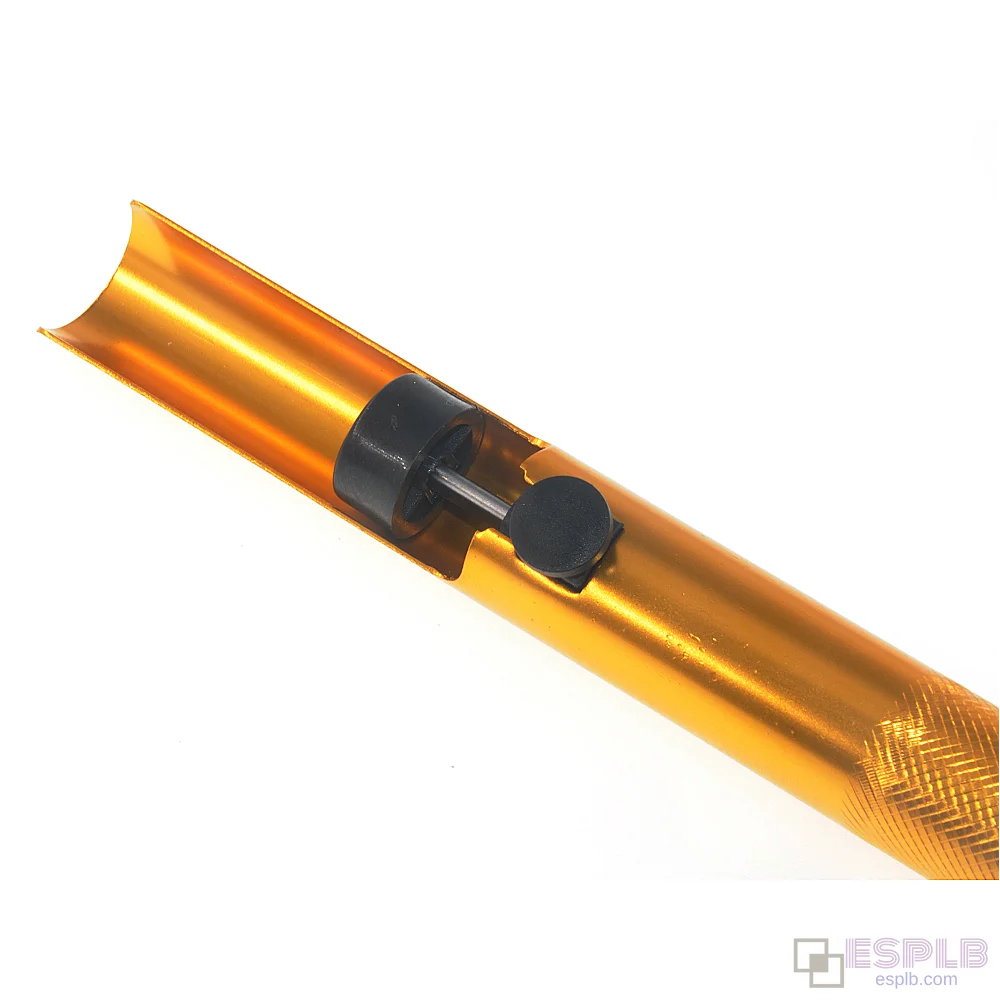

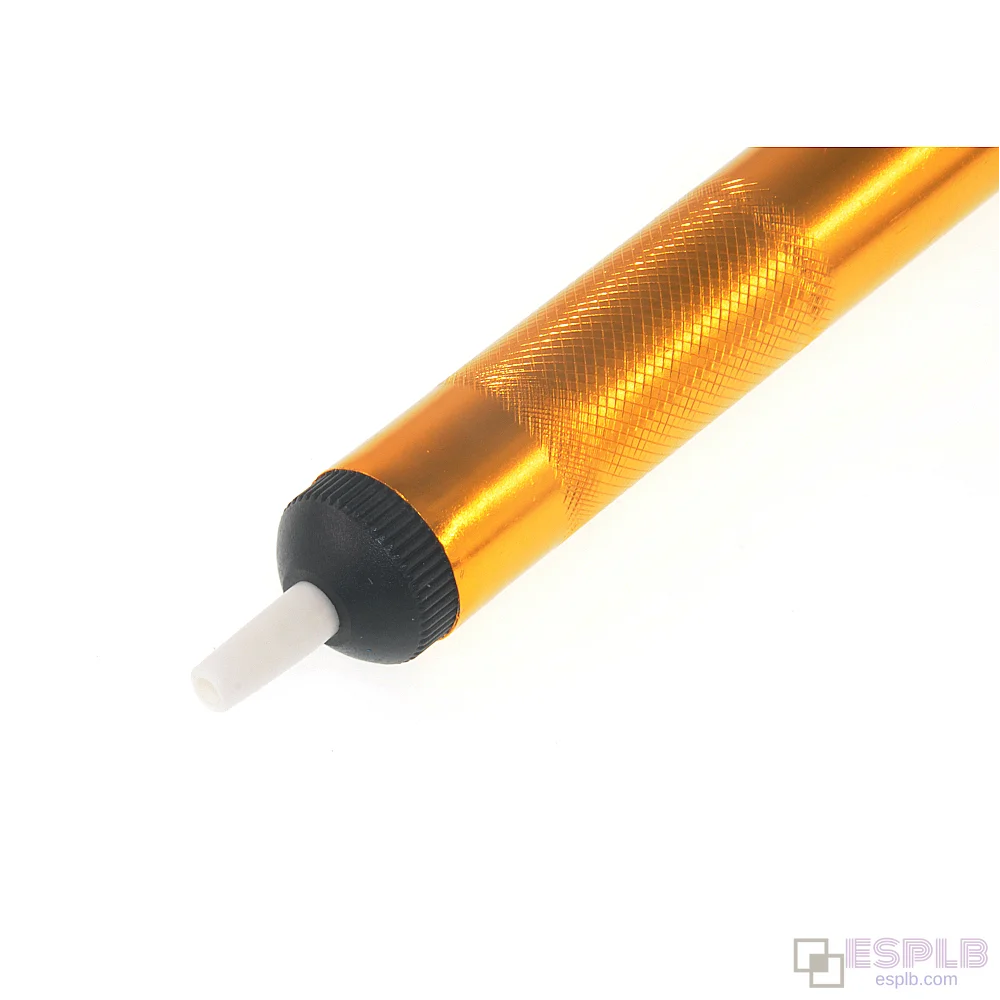

1 * Aluminum Metal Desoldering Pump Suction
Size
(Length x Width)Shipping Weight
More Detail
Specifications:
Temperature regulation range: 1℃
Application scope: Tin removal
Net weight: approx. 40g
Length: approx. 200mm/7.87''
Material: Half aluminum half plastic / whole aluminum
Maximum suction: 30
Color: Gold
Operation Manual:
1. Press the tin suctioner piston downward to get it stuck.
2. Heat the solder joints to melt the solder with an electric soldering iron.
3. Remove the iron and quickly place the tin suctioner on the solder, press the button.
4. If it is not clean after one attempt, it can be repeated multiple times.
Usage:
1. Ensure good seal of the solder sucker piston. Before use, plug the solder sucker head with your fingers, press the button, if the piston is not easy to pop out, the seal is good.
2. The tin suctioner heads have different sizes, select the appropriate specifications.
3. Replace the tin suctioner head if it wears out.
4. Dip the solder paste in a little rosin before contact with solder to improve solder fluidity.
5. The head contact pads are slightly longer, when the solder melts, center the solder joint pin, then draw a circle in a clockwise direction with your hand, and then press the tin suctioner button.
Note:
Please allow 1-3 cm difference due to manual measurement.
Due to different displays and lighting, the picture may not show the actual color of the item. Thank you for your understanding.
Package Included:
1pc x Desoldering Pump
